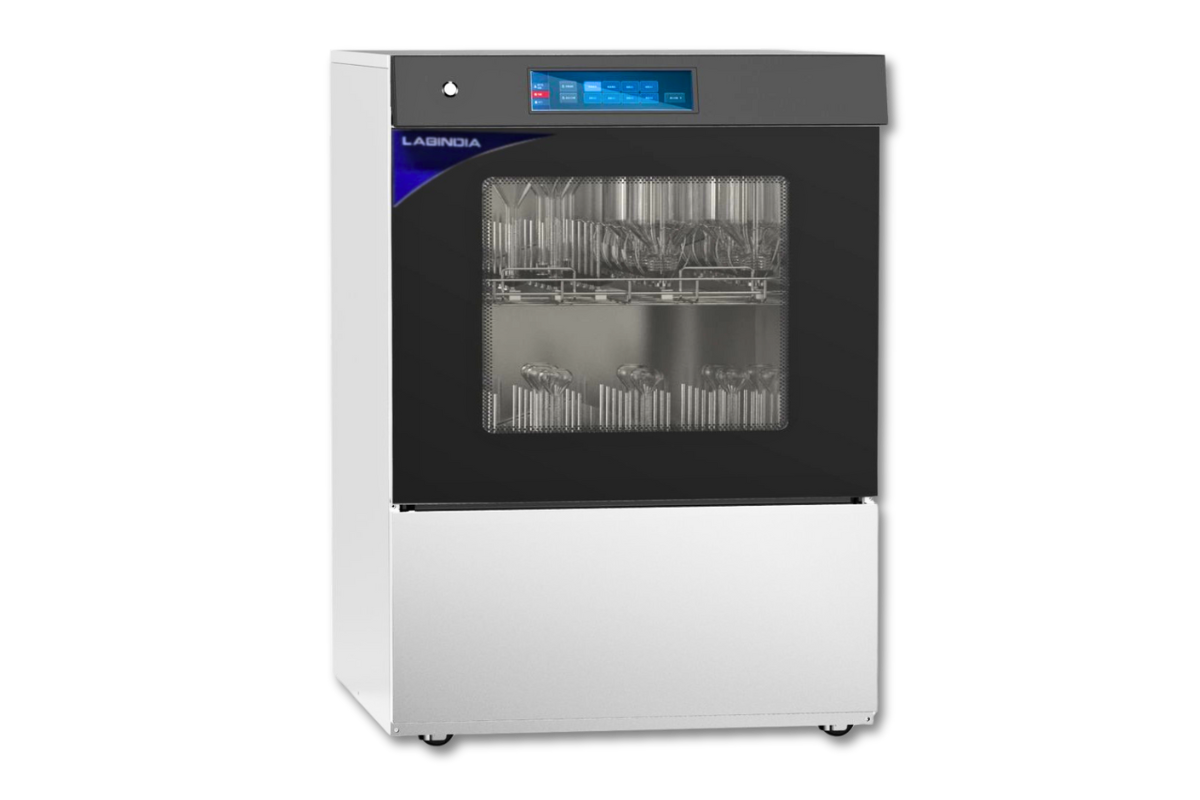

Laboratory Glassware Washer SM-1

Laboratory Glassware Washer SM-1

Experience efficient glassware cleaning with our Glasswasher, featuring a 500L/min High Flow Circulation Pump and 265L capacity across two rack levels. The 8.8” OLED Touch Screen with Multi Microprocessor Controls offers self-diagnostics and alarms. Securely store up to 120 custom programs with a three-level password system and fingerprint recognition, ensuring a seamless and user-friendly operation.

Request Quote
Category: Glassware Washer
Brand: Labindia

Description

Key Specifications –

  • High Flow Circulation pump with adjustable Flow Rate up to 500L/min.

  • Glasswasher Volume 250 Litre with 2 rack level.

  • Easy to use Multi microprocessor controls with self-diagnostic software and alarms on display with buzzer.

  • 8.8” Full Colour Large OLED display with Touch Screen, easy to read text on display for hassle – free operation

  • Program Storage – 30 Standard & 120 customizable program.

  • Program protected by 3 level password protection with Fingerprint recognition facility. Built-in Water heater for cleaning temperature up to 95°C

  • SS316L stainless steel Washing Chamber, Spray arms & Tank filters

  • SS304 stainless steel external panels

  • 2 peristaltic pump is available in system for Detergent dosing with level sensors.

  • High visibility large perspective glass window on door with integrated light control in chamber.

  • Automatic electronic door locking technology.

  • Two Sprayer for internal & external Glassware cleaning.

  • Built-in forced hot air drying thru Nozzles

  • Built-in HEPA filter ensures the reliable removal of particles from the air taken in for drying.

  • Front Opening Door for easy loading of Glassware

  • Leakage & over temperature protection.

  • Interchangeable Baskets with Top/Middle Rack Sensing function saves water and detergents

  • Multi-stage filtration system is highly efficient in removing particulate from water in circulation.

  • Power-Off Memory Function can continue wash cycle

  • Automatic Sleep and manual wakeup function.

  • Steam Condenser for water vapour reduction.

  • PT Temperature Sensor is inbuilt with 0.1°C accuracy.

  • Electronically controlled water inlets Hot/Cold water and Pure water for Washing, Rinsing and Steam condenser

  • Built-in Drain Pump for draining the water.

  • Conductivity monitoring (Optional) for ensuring quality cleaning.

  • Water Softener system (Optional) available

  • Cleaning Cycle and Audit trail data save to SD card

  • Maximum glassware load can occupy in single run which saves time, storage space & costs.

  • RS232 port for connecting to a printer or PC.

  • Electronic voltage power: 1P/N 230V-50HZ/5KW

  • Dimension :- Outside (HWD) 940691670mm
